MCD60020BT5S1X20CV2
MCD60020BT5S1X20CV2

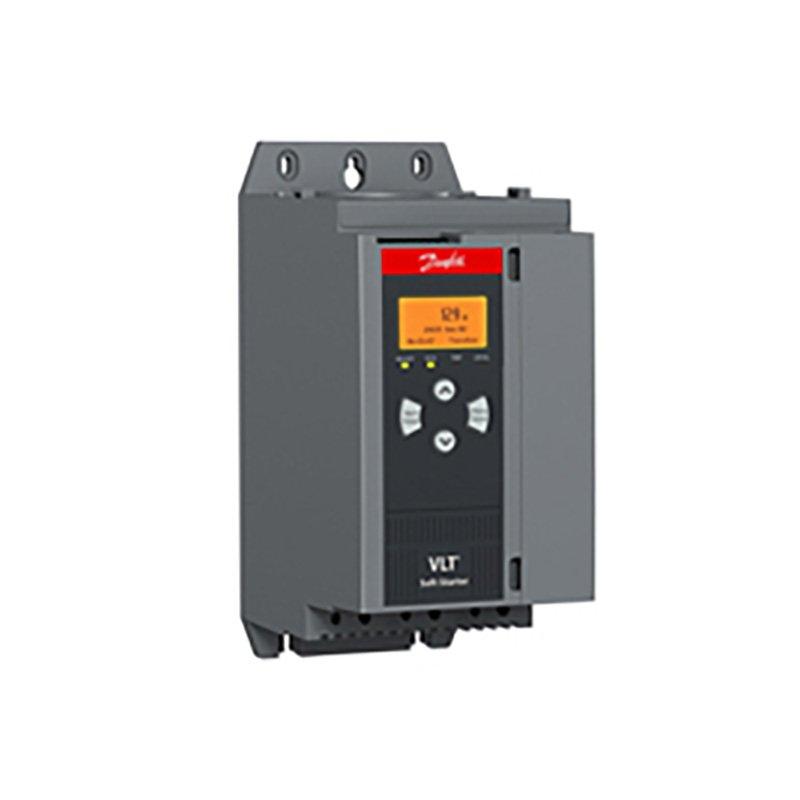

VLT® Soft Starter MCD 600
With Int. Bypass Contactor
20 A, Three phase 200-525 V AC
Frame size 1, IP20
Control Voltage: 110~120 VAC or 220~240 VAC
Other options according to Model code
VLT® Soft Starter MCD 600 is a total motor starting solution.
Current transformers measure motor current and provide fe.
| Gross weight | 4.8 kg |
| Net weight | 4.8 kg |
| Volume | 17.47 l |
| EAN | 5710108638399 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | MCD | MCD Soft Starter series |
| MCD Series | 6 | 600 Series |
| Current Rating | 0020 | 20 A |
| Bypass | B | With Int. Bypass Contactor |
| Phase | T | Three phase |
| Mains Voltage | 5 | Three phase 200-525 V AC |
| Enclosure | S1 | Frame size 1 |
| Performance | X | Reserved |
| IP Rating | 20 | IP20 |
| Control Voltage | CV2 | 110~120 VAC or 220~240 VAC |
| Typecode Part 1 | MCD60020BT5S1X20CV2 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | MCD60020BT5S1X20CV2 | |
| Calculated Gross Weight [kg] | 5.4 | |
| Calculated Net Weight [kg] | 4.8 | |
| Material Gross Weight | 4.8 | |
| Material Net Weight | 4.8 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
