Frequency converter
FC-360HK75T4E20H2BXCDXXSXXXXA0BX

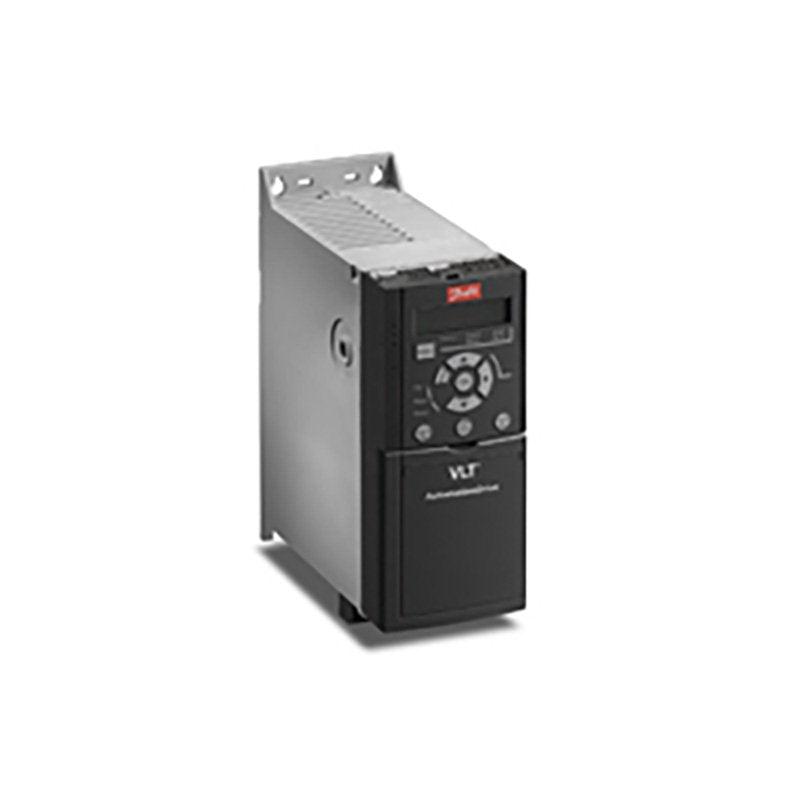

VLT® AutomationDrive FC-(360) 360
0.75 KW / 1.0 HP, (T4) 380-480VAC (Three phased), IP20 / Chassis
RFI Class A2, (B) Brake Chopper
No Display (No Blind Cover)
(C) Coated PCB, Loadsharing
Control Card With Profibus, (BX) No B Option
Frame: J1
Other options according to Model code
Danfoss VLT® AutomationDrive FC 360 is dedicated to industry applications, like pumps & fans, conveyors, extruder.
| Gross weight | 2.66 kg |
| Net weight | 2.3 kg |
| Volume | 0 l |
| EAN | 5710107427468 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 360 | (360) 360 |
| Power | H | High Overload |
| Power Size | K75 | 0.75 KW / 1.0 HP |
| Voltage | T4 | (T4) 380-480VAC (Three phased) |
| Enclosure | E20 | IP20 / Chassis |
| RFI Filter | H2 | RFI Class A2 |
| Brake & Stop | B | (B) Brake Chopper |
| Display | X | No Display (No Blind Cover) |
| Coating | C | (C) Coated PCB |
| Mains Option | D | Loadsharing |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No Adaptation |
| Special Version | SXXX | Latest release - Std. Software |
| Software Language Pack | X | Standard Language Pack |
| Control Card | A0 | Control Card With Profibus |
| B Option | BX | (BX) No B Option |
| Frame Size | J1 | J1 |
| Typecode Part 1 | FC-360HK75T4E20H2BXC | |
| Typecode Part 2 | DXXSXXXXA0BX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 2.66 | |
| Calculated Net Weight [kg] | 2.3 | |
| Material Gross Weight | 2.66 | |
| Material Net Weight | 2.3 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-360HK75T4E20H2BXC | |
| Modelcode02 | DXXSXXXXA0BX |
