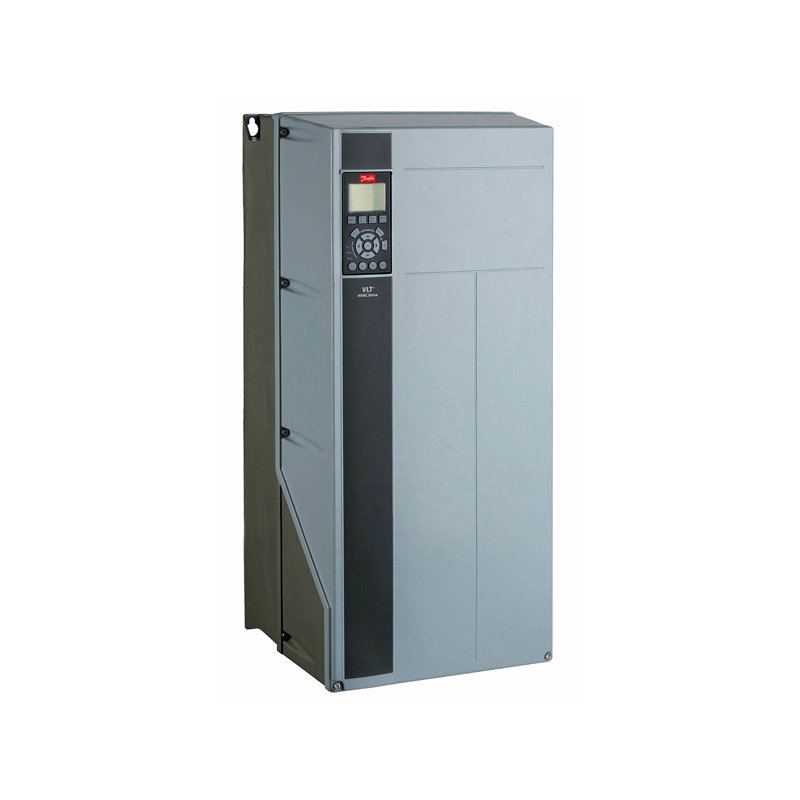

Frequency converter
FC-202P75KT4E66H2XGCXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P75K) 75 KW / 100 HP, Three phase
380 - 480 VAC, (E66) IP66 / NEMA 4X
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: C2
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
Gross weight | 60.3 kg |
Net weight | 60.2 kg |
Volume | 228.095 l |
EAN | 5702427709843 |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT® AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P75K | (P75K) 75 KW / 100 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E66 | (E66) IP66 / NEMA 4X |
RFI Filter | H2 | RFI Filter |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | C2 | C2 |
Typecode Part 1 | FC-202P75KT4E66H2XGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | GLBL | Global (Standard) |
Power 150% (HO) [KW] | 55 | |
Power 110% (NO) [KW] | 75 | |
Height [mm] | 770,0 | |
Width w/ no C options [mm] | 370,0 | |
Depth [mm] | 335,0 | |
Depth with Option A/B [mm] | 335,0 | |
kVA | 102 | |
Power Loss NO [W] | 1384 | |
Power Loss NO [W] | 1384 | |
Power Loss HO [W] | 1022 | |
Power Loss HO [W] | 1022 | |
Continuous Current (NO) [A] | 147 | |
Intermittent Current (NO) [A] | 162 | |
Continuous Current (NO) [A] | 130 | |
Intermittent Current (NO) [A] | 143 | |
Continuous Current (HO) [A] | 106 | |
Intermittent Current (HO) [A] | 159 | |
Continuous Current (HO) [A] | 105 | |
Intermittent Current (HO) [A] | 158 | |
Calculated Gross Weight [kg] | 61.3 | |
Calculated Net Weight [kg] | 61 | |
Material Gross Weight | 60.3 | |
Material Net Weight | 60.2 | |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P75KT4E66H2XGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX |
