Frequency Converter
FC-102P3K0T2E55H2XGXXXXSXXXXAXBXCXXXXDX

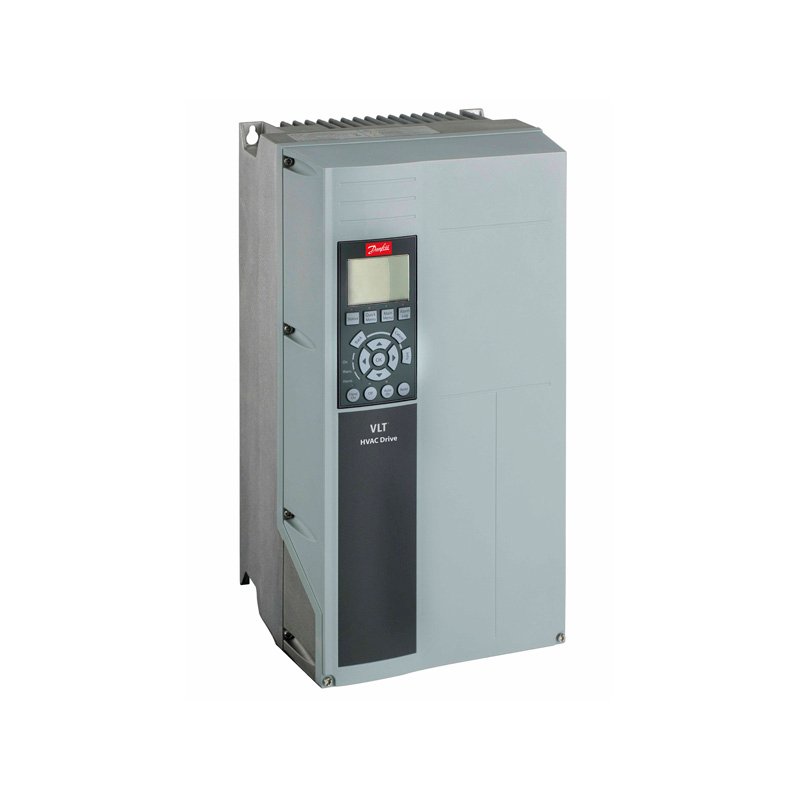

VLT® HVAC Drive FC-102
(P3K0) 3.0 KW / 4.0 HP, Three phase
200 - 240 VAC, IP55 / Type 12
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
No A Option, No B Option
No C1 option, No D option
Frame: A5
Other options according to Model code
Danfoss Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful sta.
| Gross weight | 13.55 kg |
| Net weight | 12.9 kg |
| Volume | 59.024 l |
| EAN | 5702427347854 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® HVAC Drive FC- |
| Series | 102 | 102 |
| Power Rating | P3K0 | (P3K0) 3.0 KW / 4.0 HP |
| Phase | T | Three phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | E55 | IP55 / Type 12 |
| RFI Filter | H2 | RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | A5 | A5 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-102P3K0T2E55H2XGX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Power 110% (NO) [KW] | 3 | |
| Height [mm] | 420,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | |
| kVA | 4.5 | |
| Power Loss NO [W] | 155 | |
| Continuous Current (NO) [A] | 12.5 | |
| Intermittent Current (NO) [A] | 13.8 | |
| Calculated Gross Weight [kg] | 12.6 | |
| Calculated Net Weight [kg] | 12.3 | |
| Material Gross Weight | 13.55 | |
| Material Net Weight | 12.9 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-102P3K0T2E55H2XGX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
