MCD50089BT5G1X20CV2

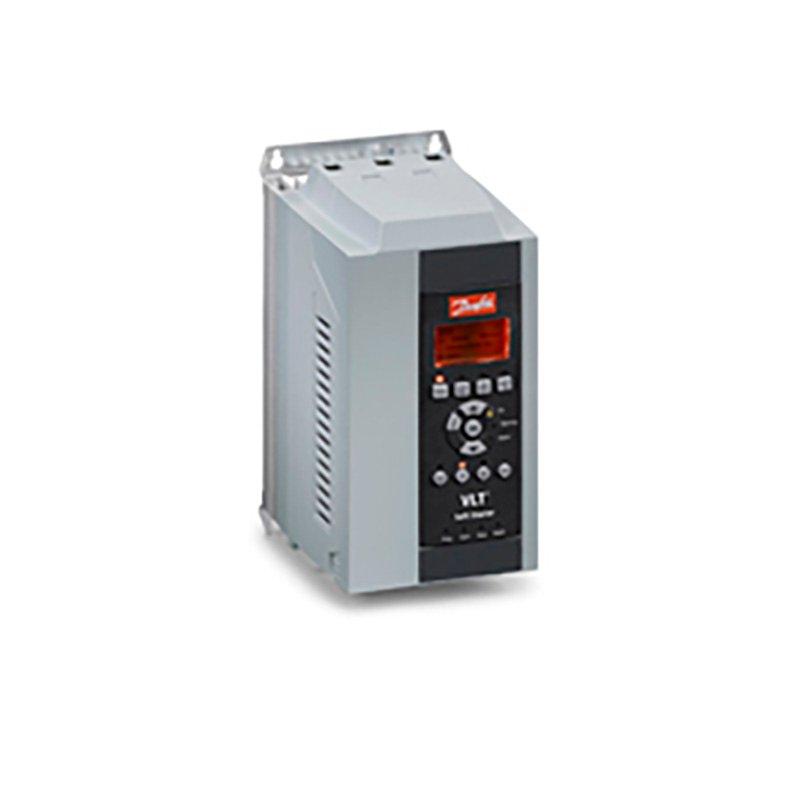

VLT® Soft Starter MCD 500
200-525 VAC, 89A, IP20,
Control Voltage: 110 VAC and 220 VAC
VLT® Soft Starter MCD 500 is a total motor starting solution.
Current transformers measure motor current and provide fe.
| Gross weight | 4.9 kg |
| Net weight | 4.9 kg |
| Dimension | 390X230X310 |
| Volume | 0 l |
| EAN | 5710107567850 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product group | MCD | VLT® Soft Starter MCD |
| MCD Series | 5 | 500 |
| Current Rating | 0089 | 89A |
| Bypass | B | With Int. Bypass Contactor |
| Phase | T | Three phase |
| Mains Voltage | 5 | 200-525 VAC |
| Enclosure | G1 | Frame size 1 |
| Reserved | X | Reserved |
| IP Rating | 20 | IP20 |
| Control Voltage | CV2 | 110 VAC and 220 VAC |
| Typecode Part 1 | MCD50089BT5G1X20CV2 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | MCD50089BT5G1X20CV2 | |
| Calculated Gross Weight [kg] | 5.8 | |
| Calculated Net Weight [kg] | 4.9 | |
| Material Gross Weight | 4.9 | |
| Material Net Weight | 4.9 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
