FC-202P11KT4E20H1XGXXXXLXX1XAQBKCXXXXD0
Frequency converter
FC-202P11KT4E20H1XGXXXXLXX1XAQBKCXXXXD0

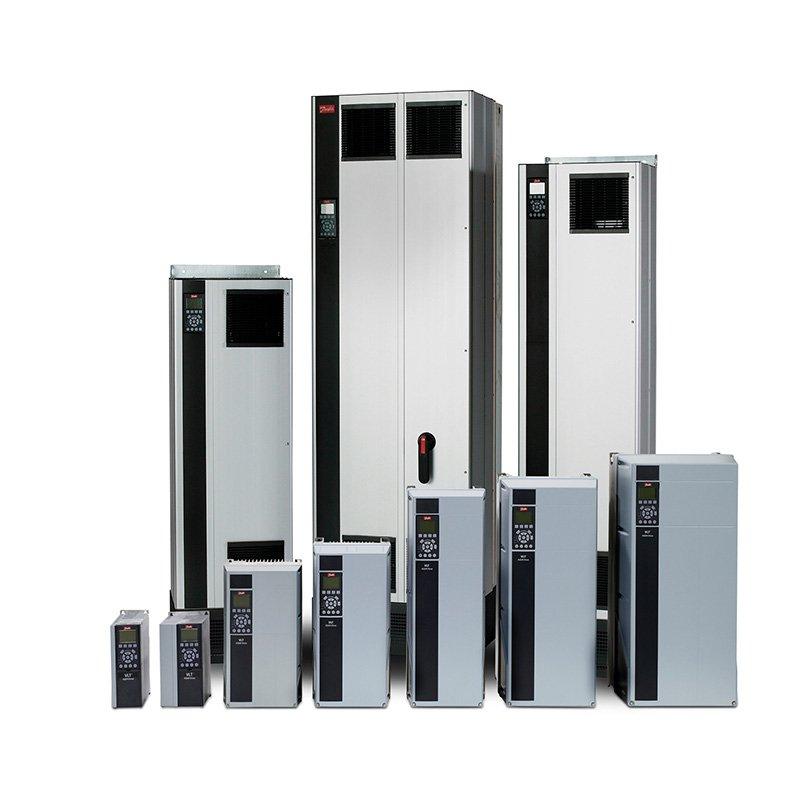

VLT® AQUA Drive FC-202
(P11K) 11 KW / 15 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Cascade controller 2.0
Modbus TCP MCA 122, MCB-101 General purp. I/O
No C1 option, MCB-107 24V DC backup
Frame: B3
Other options according to Model code
Model code:
FC-202P11KT4E20H1XGXXXXLXX1XAQBKCXXXXD0
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight |
11.7 kg |
| Net weight |
11.4 kg |
| Volume |
57.75 l |
| EAN |
5715253181813 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® AQUA DRIVE FC 200 SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
FC- |
VLT® AQUA Drive FC- |
| Series |
202 |
202 |
| Power Rating |
P11K |
(P11K) 11 KW / 15 HP |
| Phase |
T |
Three phase |
| Mains Voltage |
4 |
380 - 480 VAC |
| Enclosure |
E20 |
(E20) IP20 / Chassis |
| RFI Filter |
H1 |
(H1) RFI Class A1/B (C1) |
| Brake - Safe Stop |
X |
No brake chopper |
| LCP |
G |
Graphical Loc. Cont. Panel |
| Coating PCB |
X |
Not coated PCB |
| Mains Option |
X |
No Mains Option |
| Adaptation A |
X |
Standard Cable Entries |
| Adaptation B |
X |
No adaptation |
| Software Release |
LXX1 |
Cascade controller 2.0 |
| Software Language Pack |
X |
Standard Language Pack |
| A Option |
AQ |
Modbus TCP MCA 122 |
| B Option |
BK |
MCB-101 General purp. I/O |
| C0 Option MCO |
CX |
No C0 option |
| C1 Option |
X |
No C1 option |
| C Option Software |
XX |
No software option |
| D Option |
D0 |
MCB-107 24V DC backup |
| Frame Size |
B3 |
B3 |
| Typecode Part 1 |
FC-202P11KT4E20H1XGX |
| Typecode Part 2 |
XXXLXX1XAQBKCXXXXD0 |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Power 160% (HO) [KW] |
7.5 |
| Power 110% (NO) [KW] |
11 |
| Height [mm] |
399,0 |
| Width w/ no C options [mm] |
165,0 |
| Depth [mm] |
249,0 |
| Depth with Option A/B [mm] |
262,0 |
| kVA |
16.6 |
| Power Loss NO [W] |
392 |
| Power Loss NO [W] |
392 |
| Power Loss HO [W] |
291 |
| Power Loss HO [W] |
291 |
| Continuous Current (NO) [A] |
24 |
| Intermittent Current (NO) [A] |
26.4 |
| Continuous Current (NO) [A] |
21 |
| Intermittent Current (NO) [A] |
23.1 |
| Continuous Current (HO) [A] |
16 |
| Intermittent Current (HO) [A] |
25.6 |
| Continuous Current (HO) [A] |
14.5 |
| Intermittent Current (HO) [A] |
23.2 |
| Calculated Gross Weight [kg] |
12 |
| Calculated Net Weight [kg] |
11.7 |
| Material Gross Weight |
11.7 |
| Material Net Weight |
11.4 |
