VACON0100-3L-0003-4-X+HMGR+SEE3
VACON0100-3L-0003-4-X+HMGR
+SEE3
VACON® 100X
3,4 AMP, (-4) 380 - 480 Vac
(+DBIN) Brake Chopper, (+LS50) 50 Hz
C2 Commercial&Industry Environ
Modbus, Backnet, N2 (+FBM2), Graphical Keypad
D Slot: No board
E Slot: E3,PROFIBUS DP
Other options according to Model code

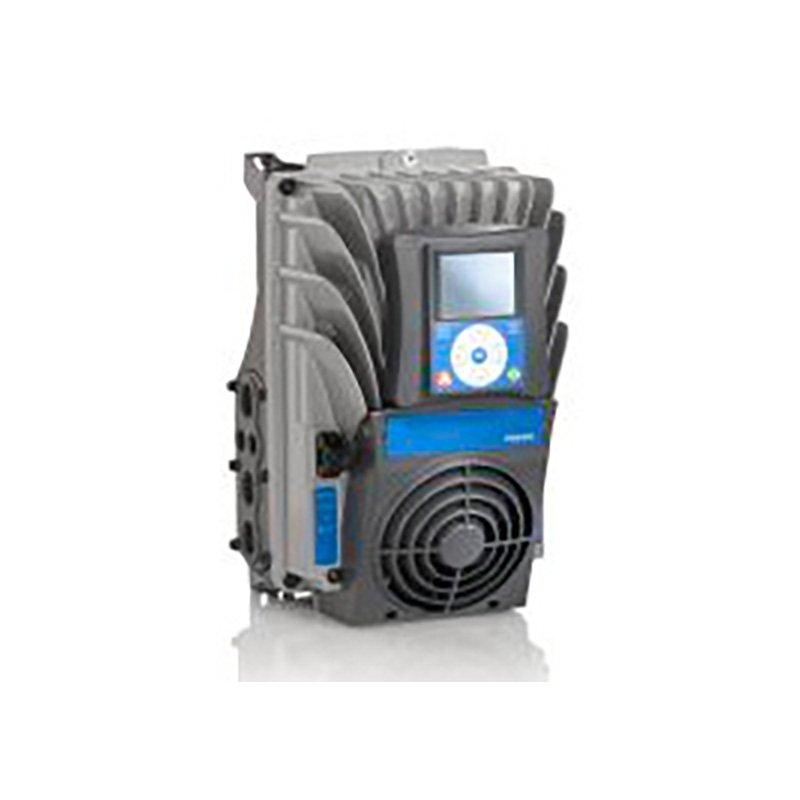

VACON® 100 X
Achieve maximum performance in extreme environments. T.
| Gross weight | 9.8 kg |
| Net weight | 8.8 kg |
| Volume | 0.311 hl |
| EAN | 5710108868253 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | VACON | VACON |
| Product Series | 0100 | VACON 100 |
| Input type | -3L | -3L |
| Current | -0003 | 3 |
| Current Description | 3,4 AMP | |
| Mains Voltage | -4 | (-4) 380 - 480 Vac |
| Segment | -X | Vacon 100X |
| Regional | -R00 | International |
| Customized | +BM1X | Vacon0100 product |
| Terminal Box | +TBOX | (+TBOX) Basic Terminal Box |
| Brake | +DBIN | (+DBIN) Brake Chopper |
| Frequency setting | +LS50 | (+LS50) 50 Hz |
| Display Units | +LSSI | Metric Units of Measure |
| Documentation level | +DQCK | (+DQCK) Quick Guide |
| Firmware Language Pack | +FL01 | UK, DE, FI, SE, IT, FR lang |
| SW Package | +F0072 | (+F0072) GP System Software |
| EMC level | +EMC2 | C2 Commercial&Industry Environ |
| Marine Approval | +E000 | (+E000) No Marine Approval |
| Application | +A0000 | (+A0000)No Special Application |
| Internal FB selection | +FBM2 | Modbus, Backnet, N2 (+FBM2) |
| Keypad | +HMGR | Graphical Keypad |
| Real Time Clock Battery | +SRNO | No Battery for real time clock |
| D Slot Option Board | +SD00 | No board |
| E Slot Option Board | +SEE3 | E3,PROFIBUS DP |
| Additional Equipment A | +Q000 | (+Q000) No add. Equipment A |
| Additional Equipment B | +Q000 | (+Q000) No add. Equipment B |
| Additional Equipment C | +Q000 | No add. Equipment C |
| Shipping Package | +GSCB | Standard Packaging Material |
| UL Approval | +GAUL | (+GAUL) UL Approval |
| CE Aproval | +GACE | (+GACE) CE Approval |
| C-tick Approval | +GACT | (+GACT) C-Tick Approval |
| KC Approval | +GAKC | (+GAKC) KC Approval |
| Frame Size | MM4 | MM 04 |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | VACON0100-3L-0003-4-X | |
| Modelcode04 | +HMGR | |
| Modelcode05 | +SEE3 | |
| Typecode Part 1 | VA100X-3L-0003-4-X+BM1X | |
| Typecode Part 2 | -000000811 | |
| Calculated Net Weight [kg] | 8.8 | |
| Calculated Gross Weight [kg] | 9.55 | |
| Dimensions WxHxD [mm] | 191X316X197 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| ECCN US | 3A999.a | |
| ECCN EU | X.A.I.003 | |
| Help Counter | 1 | |
| Material Gross Weight | 9.8 | |
| Material Net Weight | 8.8 |
