OGDSK231K131351L06RXTB1P3S9010H1BXXX1XXX

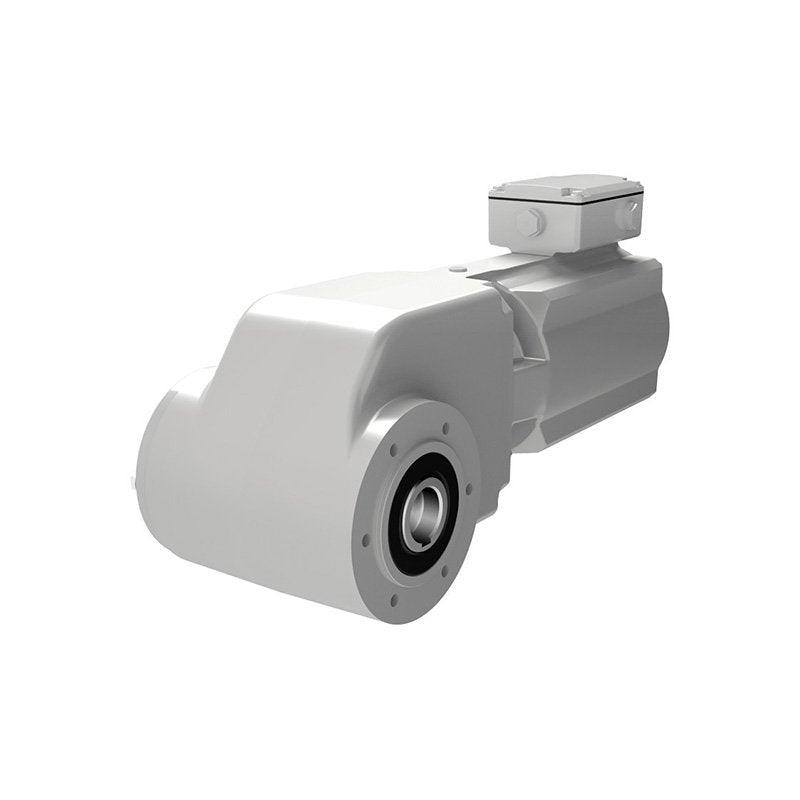

VLT® OneGearDrive
Standard, max 2.3 KW (V210),
31.13, 35 mm, Mild steel,
With CSA/UL, Vertical, motor up, Without brake,
Terminal Box
The VLT® OneGearDrive is a flexible, energy- efficient drive system
.
| Gross weight | 26 kg |
| Net weight | 25 kg |
| Volume | 0.546 hl |
| EAN | 5710108175023 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | OGD | VLT® OneGearDrive® |
| Product Variant | S | Standard |
| Gear Type | K | Bevel Gear |
| Size | 2 | V210 |
| Gear Ratio | 31K13 | 31.13 |
| Output Shaft Design | 1 | Hollow shaft |
| Output Shaft Size | 35 | 35 mm |
| Output Shaft Material | 1 | Mild steel |
| Motor Size | L06 | max 2.3 KW (V210) |
| Reserved RX | RX | Reserved X |
| Motor Connection | TB | Terminal Box |
| Connector Position | 1 | Top |
| Installation Position | P3 | Vertical, motor up |
| Surface Coating | S | Standard |
| RAL Color Code | 9010 | Standard white |
| Lubricants | H1 | Food grade oil |
| Brake | BXXX | Without brake |
| CSA / UL | 1 | With CSA/UL |
| Reserved A | X | Reserved A |
| Reserved B | X | Reserved B |
| Reserved C | X | Reserved C |
| Typecode Part 1 | OGDSK231K131351L06RXTB1P3 | |
| Typecode Part 2 | S9010H1BXXX1XXX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | OGDSK231K131351L06RXTB1P3 | |
| Modelcode02 | S9010H1BXXX1XXX | |
| Calculated Gross Weight [kg] | 26 | |
| Calculated Net Weight [kg] | 25 | |
| Material Gross Weight | 26 | |
| Material Net Weight | 25 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
