Frequency converter
FC-302P22KT7P55H4BGCXOXSXXXXAXBPCXRXXDX

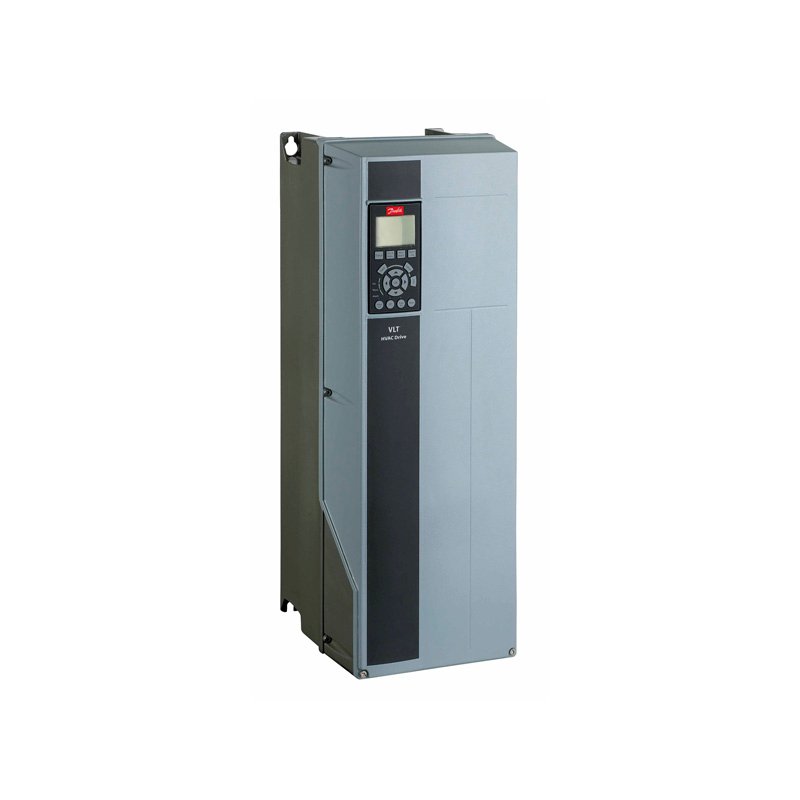

VLT® AutomationDrive FC-302
(P22K) 22 KW / 30 HP, Three phase
525 - 690 VAC *, IP55 / Type12 Backplate
RFI class A1 (C2)
Brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
No A Option, MCB-105 Relay Card
MCB-113 Ext. Relay Card, No D option
Frame: B2
Other options according to Model code
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary t.
| Gross weight | 28.3 kg |
| Net weight | 28 kg |
| Volume | 144.67 l |
| EAN | 5710108857097 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AutomationDrive FC- |
| Series | 302 | 302 |
| Power Rating | P22K | (P22K) 22 KW / 30 HP |
| Phase | T | Three phase |
| Mains Voltage | 7 | 525 - 690 VAC * |
| Possible rating issue | WARN01 | Possible Rating Issue: |
| Enclosure | P55 | IP55 / Type12 Backplate |
| RFI Filter | H4 | RFI class A1 (C2) |
| Brake - Safe Stop | B | Brake chopper |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | O | Metric thread cable entry |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BP | MCB-105 Relay Card |
| C0 Option MCO | CX | No C0 option |
| C1 Option | R | MCB-113 Ext. Relay Card |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B2 | B2 |
| Typecode Part 1 | FC-302P22KT7P55H4BGC | |
| Typecode Part 2 | XOXSXXXXAXBPCXRXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Power 160% (HO) [KW] | 22 | |
| Power 110% (NO) [KW] | 30 | |
| Height [mm] | 650,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 32.3 | |
| Power Loss NO [W] | 440 | |
| Power Loss NO [W] | 440 | |
| Power Loss HO [W] | 370 | |
| Power Loss HO [W] | 370 | |
| Continuous Current (NO) [A] | 36 | |
| Intermittent Current (NO) [A] | 39.6 | |
| Continuous Current (NO) [A] | 34 | |
| Intermittent Current (NO) [A] | 37.4 | |
| Continuous Current (HO) [A] | 28 | |
| Intermittent Current (HO) [A] | 44.8 | |
| Continuous Current (HO) [A] | 27 | |
| Intermittent Current (HO) [A] | 43.2 | |
| Calculated Gross Weight [kg] | 29.3 | |
| Calculated Net Weight [kg] | 29 | |
| Material Gross Weight | 28.3 | |
| Material Net Weight | 28 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-302P22KT7P55H4BGC | |
| Modelcode02 | XOXSXXXXAXBPCXRXXDX |
