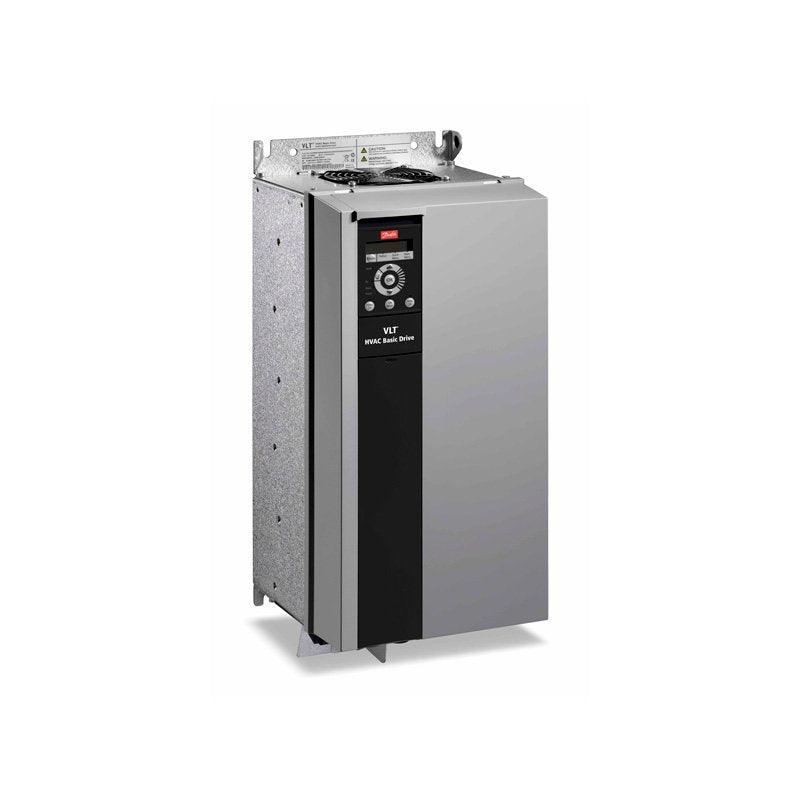

Frequency Converter
FC-101P15KT2P20H3XXXXXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC- 101
(P15K) 15 KW / 20 HP, Three phase
200 - 240 VAC, IP20 / Chassis Backplate
(H3) RFI Class A1/B (C1)
No brake chopper
No Loc. Cont. Panel
Not coated PCB, No Mains Option
No A Option, No B Option
No C1 option, No D option
Frame: H6
Other options according to Model code
These drives offer a wide range of powerful standard and optional features with low overall cost of ownership, ideal f.
| Gross weight | 22.1 kg |
| Net weight | 21.8 kg |
| Volume | 188.19 l |
| EAN | 5710107088447 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® HVAC Drive FC- |
| Series | 101 | 101 |
| Power Rating | P15K | (P15K) 15 KW / 20 HP |
| Phase | T | Three phase |
| Mains Voltage | 2 | 200 - 240 VAC |
| Enclosure | P20 | IP20 / Chassis Backplate |
| RFI Filter | H3 | (H3) RFI Class A1/B (C1) |
| Brake - Safe Stop | X | No brake chopper |
| LCP | X | No Loc. Cont. Panel |
| Coating PCB | X | Not coated PCB |
| Mains Option | X | No Mains Option |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | BX | No B Option |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | H6 | H6 |
| Product Catalog | NO_VIEW | NO VIEW |
| Typecode Part 1 | FC-101P15KT2P20H3XXX | |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
| Calculated Net Weight [kg] | 24.8 | |
| Calculated Gross Weight [kg] | 25.1 | |
| Material Gross Weight | 22.1 | |
| Material Net Weight | 21.8 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-101P15KT2P20H3XXX | |
| Modelcode02 | XXXSXXXXAXBXCXXXXDX |
