MCD60244BT7S2X00CV1
MCD60244BT7S2X00CV1

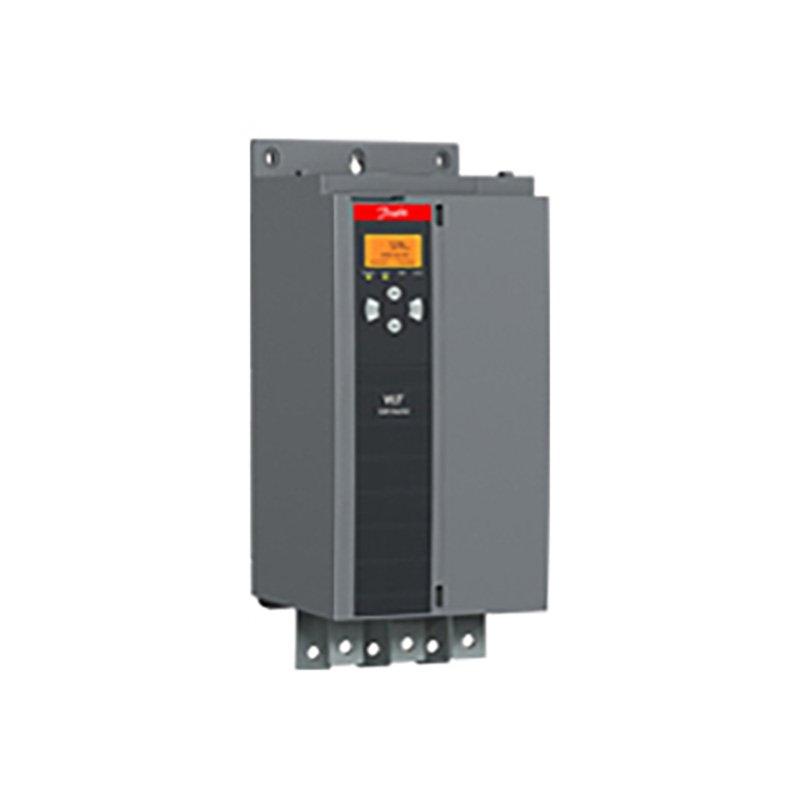

VLT® Soft Starter MCD 600
With Int. Bypass Contactor
244 A, Three phase 380-690 V AC
Frame size 2, IP00
Control Voltage: 24 VAC/VDC
Other options according to Model code
VLT® Soft Starter MCD 600 is a total motor starting solution.
Current transformers measure motor current and provide fe.
| Gross weight | 12.7 kg |
| Net weight | 12.7 kg |
| Volume | 59.4 l |
| EAN | 5710108638474 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | MCD | MCD Soft Starter series |
| MCD Series | 6 | 600 Series |
| Current Rating | 0244 | 244 A |
| Bypass | B | With Int. Bypass Contactor |
| Phase | T | Three phase |
| Mains Voltage | 7 | Three phase 380-690 V AC |
| Enclosure | S2 | Frame size 2 |
| Performance | X | Reserved |
| IP Rating | 00 | IP00 |
| Control Voltage | CV1 | 24 VAC/VDC |
| Typecode Part 1 | MCD60244BT7S2X00CV1 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | MCD60244BT7S2X00CV1 | |
| Calculated Gross Weight [kg] | 16.3 | |
| Calculated Net Weight [kg] | 15.5 | |
| Material Gross Weight | 12.7 | |
| Material Net Weight | 12.7 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
