Frequency converter
FC-202P11KT4P55H1TGC1XXSXXXXAXB2CXXXXDX

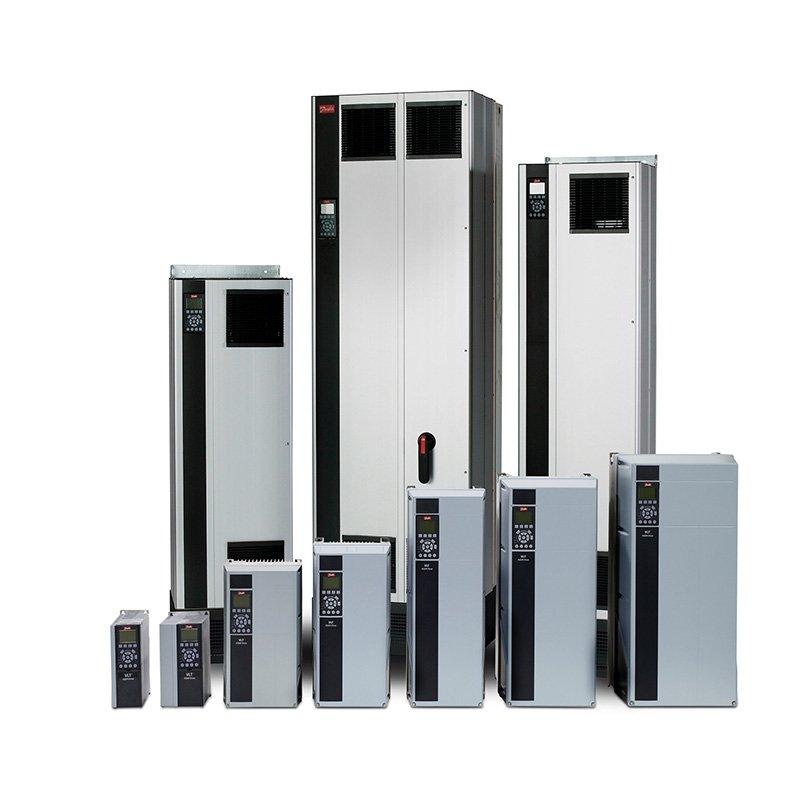

VLT® AQUA Drive FC-202
(P11K) 11 KW / 15 HP, Three phase
380 - 480 VAC, IP55 / Type12 Backplate
(H1) RFI Class A1/B (C1)
Safe Stop
Graphical Loc. Cont. Panel
Coated PCB, Mains Disconnect
Latest release std. SW.
No A Option, MCB-112 PTC Therm. Card
No C1 option, No D option
Frame: B1
Other options according to Model code
Danfoss VLT® AQUA Drive is dedicated to water and wastewater applications. With a wide range of powerful sta.
| Gross weight | 24.3 kg |
| Net weight | 24 kg |
| Volume | 144.67 l |
| EAN | 5715253387819 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® AQUA Drive FC- |
| Series | 202 | 202 |
| Power Rating | P11K | (P11K) 11 KW / 15 HP |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380 - 480 VAC |
| Enclosure | P55 | IP55 / Type12 Backplate |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | T | Safe Stop |
| LCP | G | Graphical Loc. Cont. Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 1 | Mains Disconnect |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Option |
| B Option | B2 | MCB-112 PTC Therm. Card |
| C0 Option MCO | CX | No C0 option |
| C1 Option | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | B1 | B1 |
| Typecode Part 1 | FC-202P11KT4P55H1TGC | |
| Typecode Part 2 | 1XXSXXXXAXB2CXXXXDX | |
| Product Catalog | GLBL | Global (Standard) |
| Power 160% (HO) [KW] | 7.5 | |
| Power 110% (NO) [KW] | 11 | |
| Height [mm] | 480,0 | |
| Width w/ no C options [mm] | 242,0 | |
| Depth [mm] | 260,0 | |
| Depth with Option A/B [mm] | 260,0 | |
| kVA | 16.6 | |
| Power Loss NO [W] | 392 | |
| Power Loss NO [W] | 392 | |
| Power Loss HO [W] | 291 | |
| Power Loss HO [W] | 291 | |
| Continuous Current (NO) [A] | 24 | |
| Intermittent Current (NO) [A] | 26.4 | |
| Continuous Current (NO) [A] | 21 | |
| Intermittent Current (NO) [A] | 23.1 | |
| Continuous Current (HO) [A] | 16 | |
| Intermittent Current (HO) [A] | 25.6 | |
| Continuous Current (HO) [A] | 14.5 | |
| Intermittent Current (HO) [A] | 23.2 | |
| Calculated Gross Weight [kg] | 23.5 | |
| Calculated Net Weight [kg] | 23.2 | |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-202P11KT4P55H1TGC | |
| Modelcode02 | 1XXSXXXXAXB2CXXXXDX |
