OGDSK231K131I12L06RXTB1P2S9010H1BXXXXXXX
OGDSK231K131I12L06RXTB1P2S9010H1BXXXXXXX

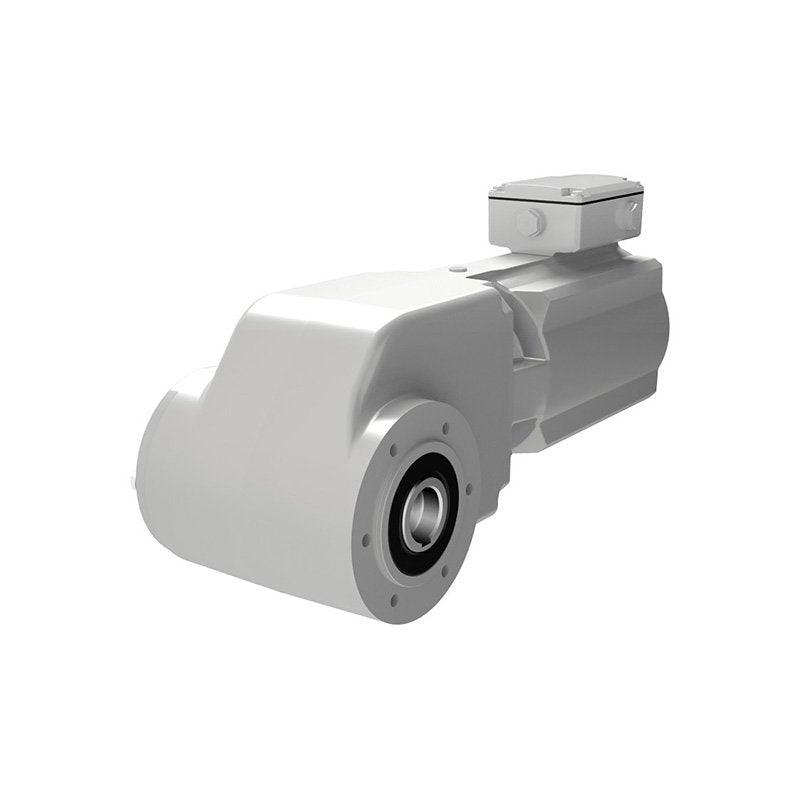

VLT® OneGearDrive
Standard, max 2.3 KW (V210),
31.13, 1 1/4 Inches, Stainless steel,
Without CSA/UL, Horiz., conn. up or down, Without brake,
Terminal Box
Model code:OGDSK231K131I12L06RXTB1P2S9010H1BXXXXXXX
The VLT® OneGearDrive is a flexible, energy- efficient drive system
.
| Gross weight |
25 kg |
| Net weight |
24 kg |
| Volume |
0.546 hl |
| EAN |
5715253090023 |
Sales restriction control
| Matr grp for sales restriction |
0001 |
No grouping |
VLT® ONEGEARDRIVE SERIES
| Product View (Switch) |
GLBL |
Global (Standard) |
| Product Group |
OGD |
VLT® OneGearDrive® |
| Product Variant |
S |
Standard |
| Gear Type |
K |
Bevel Gear |
| Size |
2 |
V210 |
| Gear Ratio |
31K13 |
31.13 |
| Output Shaft Design |
1 |
Hollow shaft |
| Output Shaft Size |
I1 |
1 1/4 Inches |
| Output Shaft Material |
2 |
Stainless steel |
| Motor Size |
L06 |
max 2.3 KW (V210) |
| Reserved RX |
RX |
Reserved X |
| Motor Connection |
TB |
Terminal Box |
| Connector Position |
1 |
Top |
| Installation Position |
P2 |
Horiz., conn. up or down |
| Surface Coating |
S |
Standard |
| RAL Color Code |
9010 |
Standard white |
| Lubricants |
H1 |
Food grade oil |
| Brake |
BXXX |
Without brake |
| CSA / UL |
X |
Without CSA/UL |
| Reserved A |
X |
Reserved A |
| Reserved B |
X |
Reserved B |
| Reserved C |
X |
Reserved C |
| Typecode Part 1 |
OGDSK231K131I12L06RXTB1P2 |
| Typecode Part 2 |
S9010H1BXXXXXXX |
| Product Catalog |
NO_VIEW |
NO VIEW |
| Modelcode01 |
OGDSK231K131I12L06RXTB1P2 |
| Modelcode02 |
S9010H1BXXXXXXX |
| Calculated Gross Weight [kg] |
25 |
| Calculated Net Weight [kg] |
24 |
| Material Gross Weight |
25 |
| Material Net Weight |
24 |
| Vendor |
ERR01 |
Cannot Determine Vendor |
| Recommended Factory |
ERR01 |
Cannot Determine Vendor |
