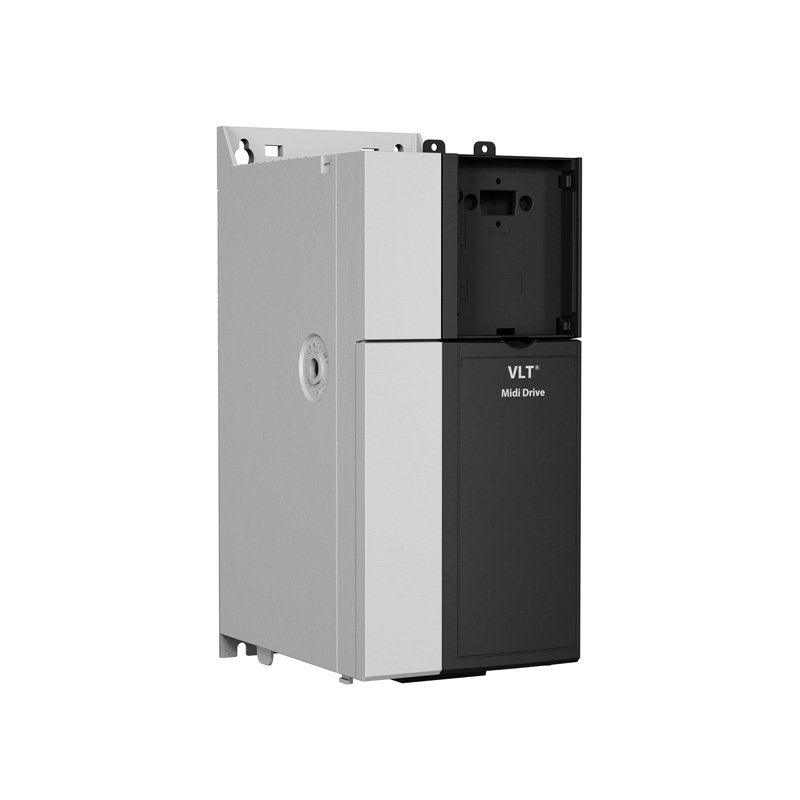

Frequency converter
FC-280P7K5T4E20H2BXCXXXSXXXXAN
VLT® Midi Drive FC-280
7.5 kW / 10 HP, Three phase 380-480 VAC
IP20 / Chassis, EMC Cat C3 (200/400V)
Brake chopper, No display
Coated PCB, Latest release
Integrated EtherNET IP
Frame: K3
Other options according to Model code
Note: The FC 280 does not include an LCP display or Memory Module.
.
| Gross weight | 5.21 kg |
| Net weight | 4.66 kg |
| Volume | 21.28 l |
| EAN | 5710108067892 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Midi Drive FC- |
| Series | 280 | 280 |
| Power Size | P7K5 | 7.5 kW / 10 HP |
| Voltage | T4 | Three phase 380-480 VAC |
| Enclosure | E20 | IP20 / Chassis |
| RFI Filter | H2 | EMC Cat C3 (200/400V) |
| Brake & Stop | B | Brake chopper |
| Display | X | No display |
| Coating | C | Coated PCB |
| Mains Option | X | No mains options |
| Adaptation A | X | No Adaption |
| Adaptation B | X | No Adaption |
| Special Version | SXXX | Latest release |
| Software Language Pack | X | Standard language pack |
| Control Card | AN | Integrated EtherNET IP |
| Frame Size | K3 | K3 |
| Typecode Part 1 | FC-280P7K5T4E20H2BXC | |
| Typecode Part 2 | XXXSXXXXAN | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 4.9 | |
| Calculated Net Weight [kg] | 4.6 | |
| Material Gross Weight | 5.21 | |
| Material Net Weight | 4.66 | |
| Intermittent Current (HO) [A] | 24.8 | |
| Intermittent Current (HO) [A] | 24.8 | |
| Continuous Current (HO) [A] | 15.5 | |
| Continuous Current (HO) [A] | 14 | |
| Power Loss HO [W] | 192.8 | |
| kVA | 10.7 | |
| Power 160% (HO) [KW] | 7.5 | |
| Height [mm] | 272.5 | |
| Width w/ no C options [mm] | 115 | |
| Depth [mm] | 168 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-280P7K5T4E20H2BXC | |
| Modelcode02 | XXXSXXXXAN |
