Frequency converter
FC-280P1K1S2E20H1XXCXXXSFS1XAL

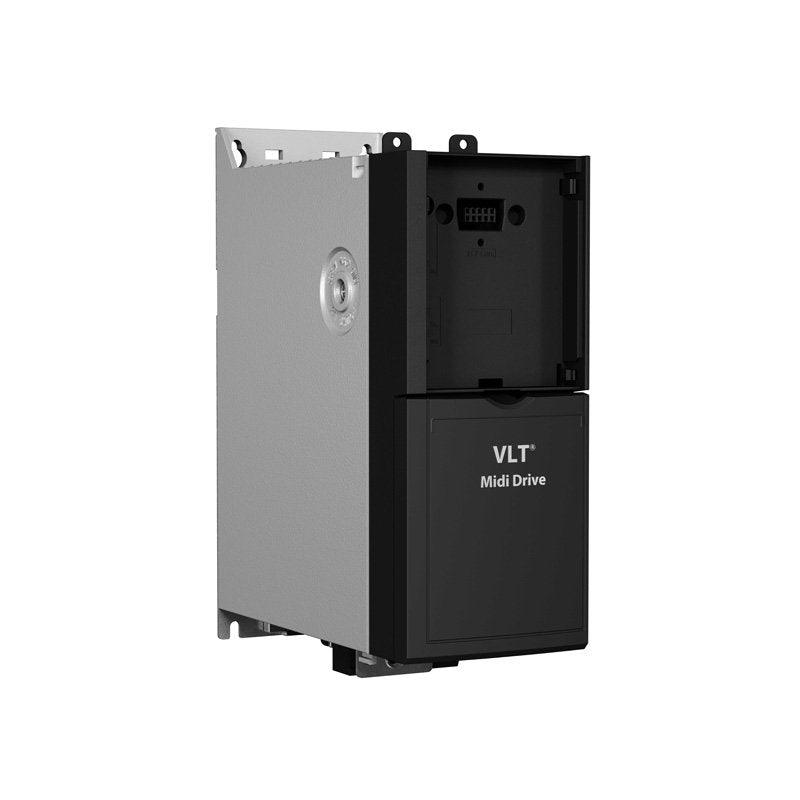

VLT® Midi Drive FC-280
1.1 kW / 1.5 HP, Single phase 200-240 VAC
IP20 / Chassis, EMC Cat C1(200V)/C2(400V)
No Brake chopper, No display
Coated PCB, Funct. Safety over com
Integrated PROFINET
Frame: K1
Other options according to Model code
Note: The FC 280 does not include an LCP display or Memory Module.
.
| Gross weight | 2.8 kg |
| Net weight | 2.5 kg |
| Volume | 0 l |
| EAN | 5714853413508 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FC- | VLT® Midi Drive FC- |
| Series | 280 | 280 |
| Power Size | P1K1 | 1.1 kW / 1.5 HP |
| Voltage | S2 | Single phase 200-240 VAC |
| Enclosure | E20 | IP20 / Chassis |
| RFI Filter | H1 | EMC Cat C1(200V)/C2(400V) |
| Brake & Stop | X | No Brake chopper |
| Display | X | No display |
| Coating | C | Coated PCB |
| Mains Option | X | No mains options |
| Adaptation A | X | No Adaption |
| Adaptation B | X | No Adaption |
| Special Version | SFS1 | Funct. Safety over com |
| Software Language Pack | X | Standard language pack |
| Control Card | AL | Integrated PROFINET |
| Frame Size | K1 | K1 |
| Typecode Part 1 | FC-280P1K1S2E20H1XXC | |
| Typecode Part 2 | XXXSFS1XAL | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 2.8 | |
| Calculated Net Weight [kg] | 2.5 | |
| Material Gross Weight | 2.8 | |
| Material Net Weight | 2.5 | |
| Intermittent Current (HO) [A] | 9.6 | |
| Continuous Current (HO) [A] | 6 | |
| Power Loss HO [W] | 76.8 | |
| kVA | 2.4 | |
| Power 160% (HO) [KW] | 1.1 | |
| Height [mm] | 210 | |
| Width w/ no C options [mm] | 75 | |
| Depth [mm] | 168 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FC-280P1K1S2E20H1XXC | |
| Modelcode02 | XXXSFS1XAL |
