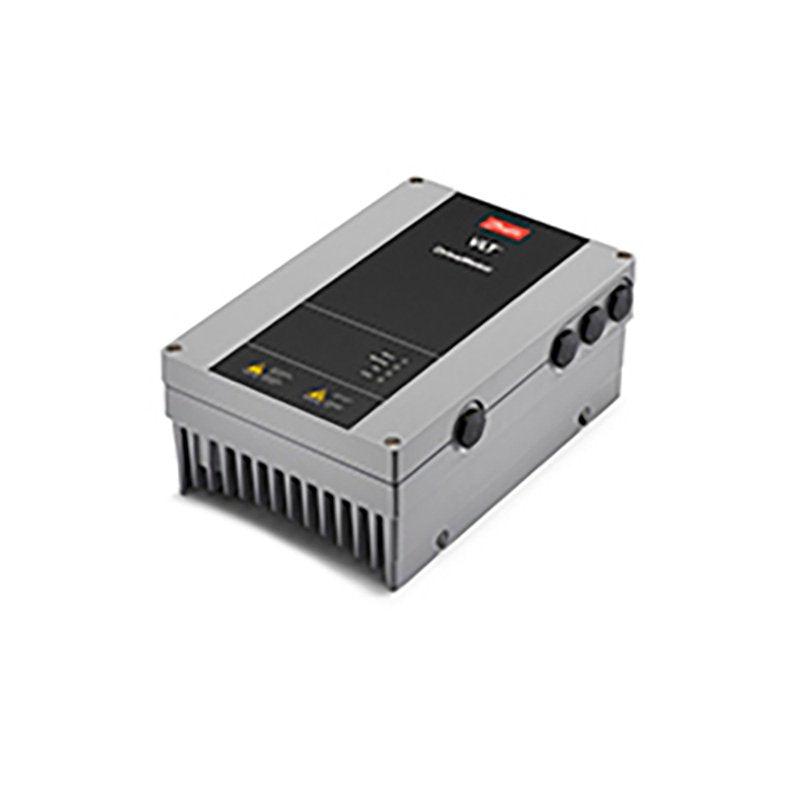

VLT® DriveMotor FCP 106
7.5 KW / 10 HP, Three phase 380-480 VAC
Standard IP66/UL type 4X
Integrated RFI Class A1/B
No option
Frame: MH3
'VLT® DriveMotor FCP 106 is a standalone drive for
mounting on any standard induction or permanent magnet.
| Gross weight | 8.7 kg |
| Net weight | 8.4 kg |
| Volume | 22.04 l |
| EAN | 5710108075743 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | FCP | VLT® DriveMotor FCP |
| Series | 106 | 106 |
| Power Size | H7K5 | 7.5 KW / 10 HP |
| Voltage | T4 | Three phase 380-480 VAC |
| Enclosure | C66 | Standard IP66/UL type 4X |
| RFI Filter | H1 | Integrated RFI Class A1/B |
| Fan Option | F | With Fan |
| Special Version | SXX | Latest release - std. software |
| Options | AX | No option |
| Memory module | 0 | Memory module |
| Frame Size | MH3 | MH3 |
| Typecode Part 1 | FCP106H7K5T4C66H1FSXXAX0 | |
| Product Catalog | GLBL | Global (Standard) |
| Plant from Orderline | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | FCP106H7K5T4C66H1FSXXAX0 |
