AAF006A190T4E2MHXXGC7XXSXXXXAXBXCFXXXDX

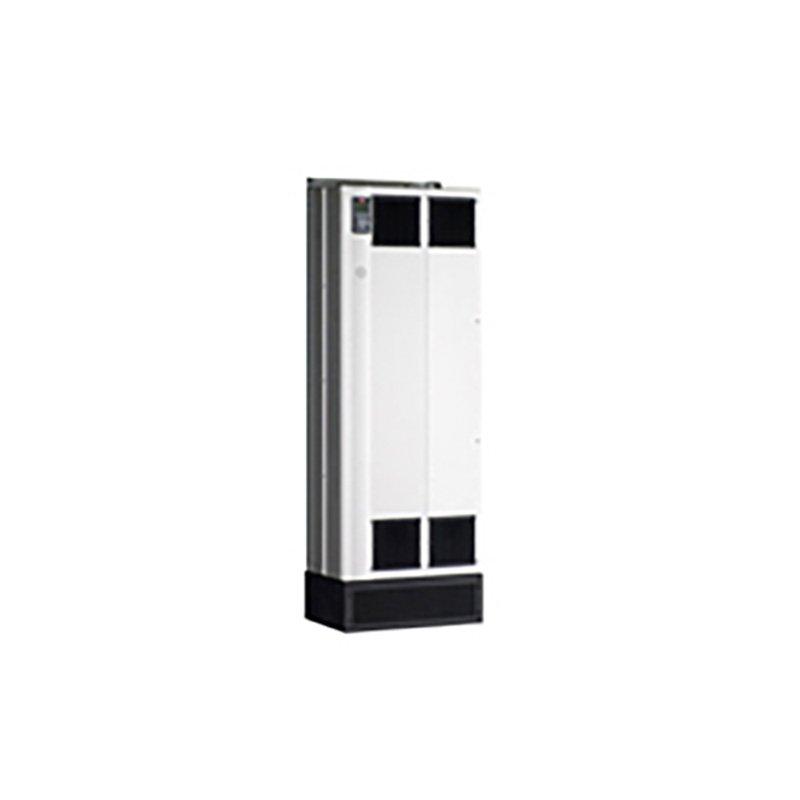

Advanced Active Filter AAF
380-480 VAC, 190Amp correction, IP21 / With mains shield,
No RFI Filter, Fuse
Danfoss Advanced Active Filters eliminate harmonic
distortion from non-linear loads and improve system power.
| Gross weight | 273 kg |
| Net weight | 238 kg |
| Volume | 0 l |
| EAN | 5710107648962 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | AAF | Advanced Active Filter AAF |
| VLT Series | 006 | 006 |
| Current Rating | A190 | 190Amp correction |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380-480 VAC |
| Enclosure | E2M | IP21 / With mains shield |
| RFI Filter | HX | No RFI Filter |
| Brake - Safe Stop | X | No brake chopper |
| Display | G | Graphical Control Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 7 | Fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Options |
| B Option | BX | No B Option |
| C0 Options MCO | CF | Active Filter Guard |
| C1 Options | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | D14 | (D14) D14-Frame |
| Typecode Part 1 | AAF006A190T4E2MHXXGC7XXSXXXXAX | |
| Typecode Part 2 | BXCFXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 273 | |
| Calculated Net Weight [kg] | 238 | |
| Material Gross Weight | 273 | |
| Material Net Weight | 238 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | AAF006A190T4E2MHXXGC7XXSXXXXAX | |
| Modelcode02 | BXCFXXXDX |
