AAF006A400T4E54H4XGC3XXSXXXXAXBXCFXXXDX

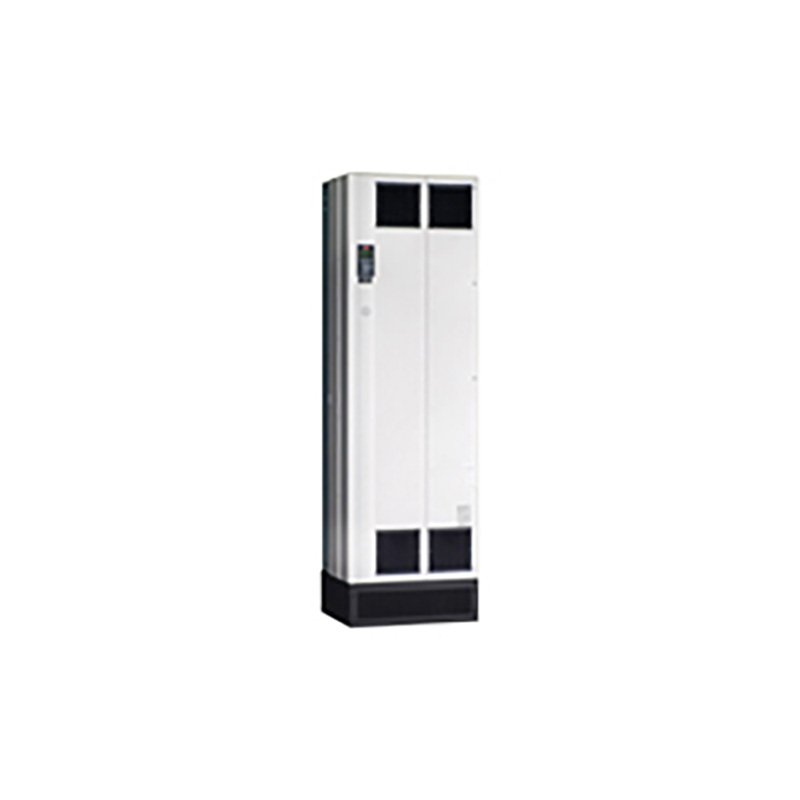

Advanced Active Filter AAF
380-480 VAC, 400Amp correction, IP54 / Type 12,
RFI class A1, Mains Disconnect + fuse
Danfoss Advanced Active Filters eliminate harmonic
distortion from non-linear loads and improve system power.
| Gross weight | 579 kg |
| Net weight | 479 kg |
| Volume | 1456.84 l |
| EAN | 5710107363773 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product Group | AAF | Advanced Active Filter AAF |
| VLT Series | 006 | 006 |
| Current Rating | A400 | 400Amp correction |
| Phase | T | Three phase |
| Mains Voltage | 4 | 380-480 VAC |
| Enclosure | E54 | IP54 / Type 12 |
| RFI Filter | H4 | RFI class A1 |
| Brake - Safe Stop | X | No brake chopper |
| Display | G | Graphical Control Panel |
| Coating PCB | C | Coated PCB |
| Mains Option | 3 | Mains Disconnect + fuse |
| Adaptation A | X | Standard Cable Entries |
| Adaptation B | X | No adaptation |
| Software Release | SXXX | Latest release std. SW. |
| Software Language Pack | X | Standard Language Pack |
| A Option | AX | No A Options |
| B Option | BX | No B Option |
| C0 Options MCO | CF | Active Filter Guard |
| C1 Options | X | No C1 option |
| C Option Software | XX | No software option |
| D Option | DX | No D option |
| Frame Size | E1 | (E1) E1-Frane |
| Typecode Part 1 | AAF006A400T4E54H4XGC3XXSXXXXAX | |
| Typecode Part 2 | BXCFXXXDX | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 575 | |
| Calculated Net Weight [kg] | 453 | |
| Material Gross Weight | 579 | |
| Material Net Weight | 479 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Modelcode01 | AAF006A400T4E54H4XGC3XXSXXXXAX | |
| Modelcode02 | BXCFXXXDX |
