Frequency converter
VACON0100-3L-0731-5-FLOW+SBF4+SDE5+SEBJ+IP00+FL05+DLDE

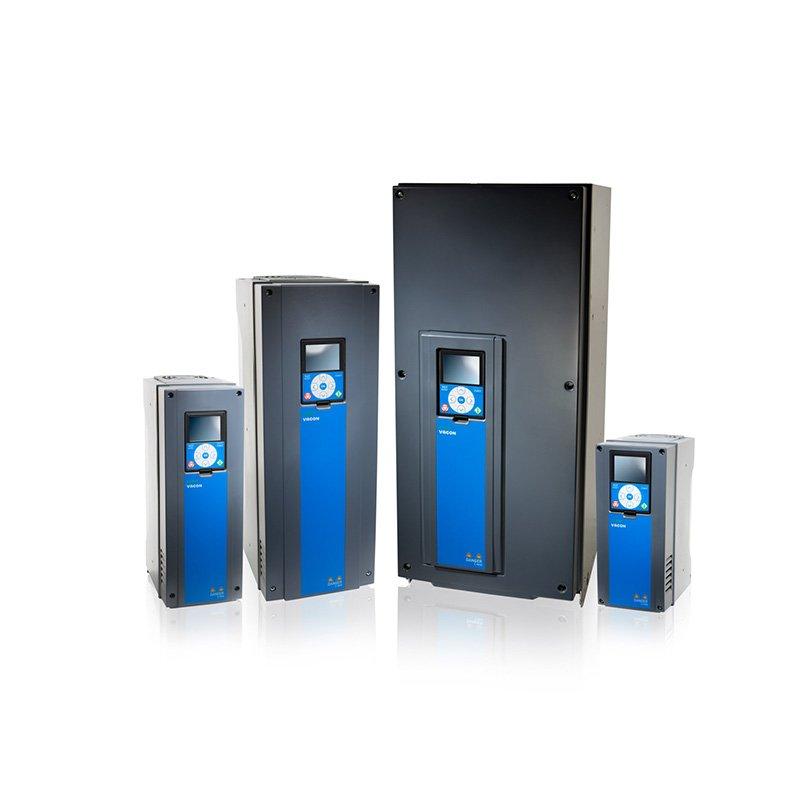

VACON 100 FLOW
380-500 Vac, 731 Amp,IP00
Graphical Keypad MK01
C3 Commercial&Industry Environ
B Slot: F4,2 Relay board with therm
C Slot: No board
D Slot: E5,PROFIBUS DP with Sub-D9
E Slot: BJ,STO, ATEX therm
Fieldbus: Std protocol,Modbus,N2,BacNet
Manual: German
MR11
Other options according to Model code
VACON® 100 AC drives are ideal for saving energy, optimizing process control and improving productivity. They are design.
| Gross weight | 895.4 kg |
| Net weight | 894.4 kg |
| Volume | 0 l |
| EAN | 5714853008582 |
| Product View (Switch) | GLBL | Global (Standard) |
| Segment | -FLOW | VACON 100 FLOW |
| Region Code | -R00 | R00 International |
| Mains voltage | -5 | 380-500 Vac |
| Current rating | -0731 | 731 Amp |
| Installation options | -DM | DM Drive Module |
| Enclosure | +IP00 | IP00 |
| Control panel | +HMGR | Graphical Keypad MK01 |
| EMC emission limit category | +EMC3 | C3 Commercial&Industry Environ |
| Common mode filter (for DM) | +P000 | No Option |
| DUT filter (for DM) | +P000 | No Option |
| Brake chopper | +DBNO | No dynamic braking device |
| Real time clock option | +SRNO | No Battery for real time clock |
| Configurable power range | NONE | None |
| Power connections | +P000 | No Power options (+P000) |
| Cable entry | +QGLM | Metric conduit plate |
| Additional Equipment B | +Q000 | No option for Qxxx_B (+Q000) |
| Additonal Equipment C | +Q000 | No additonal option for Qxxx_C |
| Shipping package | +GSWP | Wooden box as shipping pack |
| Marine construction | +C000 | no option (+C000) |
| B-Slot Option Board | +SBF4 | F4,2 Relay board with therm |
| C- Slot Option Board | +SC00 | No board |
| D-Slot Option Board | +SDE5 | E5,PROFIBUS DP with Sub-D9 |
| E-Slot Option Board | +SEBJ | BJ,STO, ATEX therm |
| Internal FB selection | +FBM1 | Std protocol,Modbus,N2,BacNet |
| Documentation level | +DPAP | Paper Manuals |
| Document language preference | +DLDE | German |
| Firmware Language Pack | +FL05 | UK, DE, EE, HU, RO, TR lang |
| Application | +A0000 | No Application |
| Parameter Set | +L0000 | No application parameter set |
| Motor parameter default freq | +LS50 | 50 Hz def motor freq settings |
| Unit for measure for display | +LSSI | Metric Units of Measure |
| Labeling options | +LPC1 | no additional labels |
| UL approval | +GAUL | UL Approval (+GAUL) |
| Marine approval | NONE | None |
| RCM Approval | +GACT | (+GACT) RCM Approval N16307 |
| KC approval | +GAKC | KC Approval |
| Ukrainian approval | +GAUA | Ukrainian Approval |
| EAC Approval | +GAEA | EAC Approval |
| Auxilary power supply | +C000 | no option (+C000) |
| DC power supply for aux device | +C000 | no option (+C000) |
| AC socket for aux devices | +C000 | no option (+C000) |
| Input Devices | NONE | none_ |
| Common mode filter (for ED) | +P000 | no option |
| DU/DT, Sine filter (for ED) | +P000 | no option |
| Terminal Options | NONE | none_ |
| Door Equipments | +C000 | no option (+C000) |
| Cabinet heater | +C000 | no option (+C000) |
| Cabinet light | +C000 | no option (+C000) |
| Motor heater control | +C000 | no option (+C000) |
| Emergency stop options | +C000 | no option (+C000) |
| Insulation fault sensor | +C000 | no option (+C000) |
| Cabling from top | +C000 | no option (+C000) |
| Back channel cooling | +C000 | no option (+C000) |
| Cabinet Plinth | NONE | None |
| Empty extension segment | NONE | None |
| Standardized cabinet solution | NONE | None |
| Engineered cabinet solution | NONE | None |
| Product Group | VACON | VACON |
| Product Series | 0100 | Vacon 100 series |
| Phase | -3L | 3 Phase AC Input |
| Customized | +BM2H | Vacon 100-FLOW |
| Main Circuit | +M000 | NONE |
| Firmware | +F0159 | Vacon0100-Flow Software pack |
| Max output frequency | NONE | None |
| Terminal Box | +T000 | NONE |
| Bypass Control Operation Mode | NONE | none_ |
| Bypass Input Type | NONE | none_ |
| Bypass power connection type | NONE | none_ |
| CE approval | +GACE | CE Approval (+GACE) |
| ATEX Approval | NONE | None |
| County Specific Approval | NONE | None |
| Warrenty time | +WT01 | Warranty 12/18 months (+WT01) |
| Frame Size | MR11 | MR11 |
| Product Catalog | NO_VIEW | NO VIEW |
| Modelcode01 | VACON0100-3L-0731-5 | |
| Modelcode02 | -FLOW+SBF4+SDE5+SEBJ+IP00+FL05 | |
| Modelcode03 | +DLDE | |
| Calculated Net Weight [kg] | 214 | |
| Calculated Gross Weight [kg] | 215 | |
| Motor Power Low Overload [kW] | 400 | |
| Dimensions WxHxD [mm] net | 960 X 971 X 365 | |
| Dimensions WxHxD [mm] Gross | 1170 X 1350 X 760 | |
| Continuous Current (NO) [A] | 730 | |
| Motor Power HP Low Overload | 600 | |
| Typecode Part 1 | 70-AB3L07315W11B030BM2H | |
| Typecode Part 2 | -00124874 | |
| Stockcode part 1 | 70-AB3L07315W11B030BM2H | |
| Stockcode part 2 | -00124874 | |
| check if complete | OK | |
| Plant from Orderline | A902 | |
| Vendor | ERR01 | Cannot Determine Vendor |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
| Help Counter | 5 | |
| Help Counter | 3 | |
| Calculated Net Weight | 894.4 | |
| Material Gross Weight | 895.4 | |
| Material Net Weight | 894.4 | |
| Salestext | MR11-0731-5+IP00+EMC3 | |
| Sub family identification | NONE | Normal customer ordered |
| Matr grp for sales restriction | 0001 | No grouping |
| ECCN US | 3A999.a | |
| ECCN EU | X.A.I.003 |
