Sine-wave Filter for Frequency Converters
OF7S1-S-AN-25-73A0-070-TX-E00
Air-cooled, passive, 200-500 V AC
73 A, 70 Hz
Thermal Switch: None
IP00/Open Type

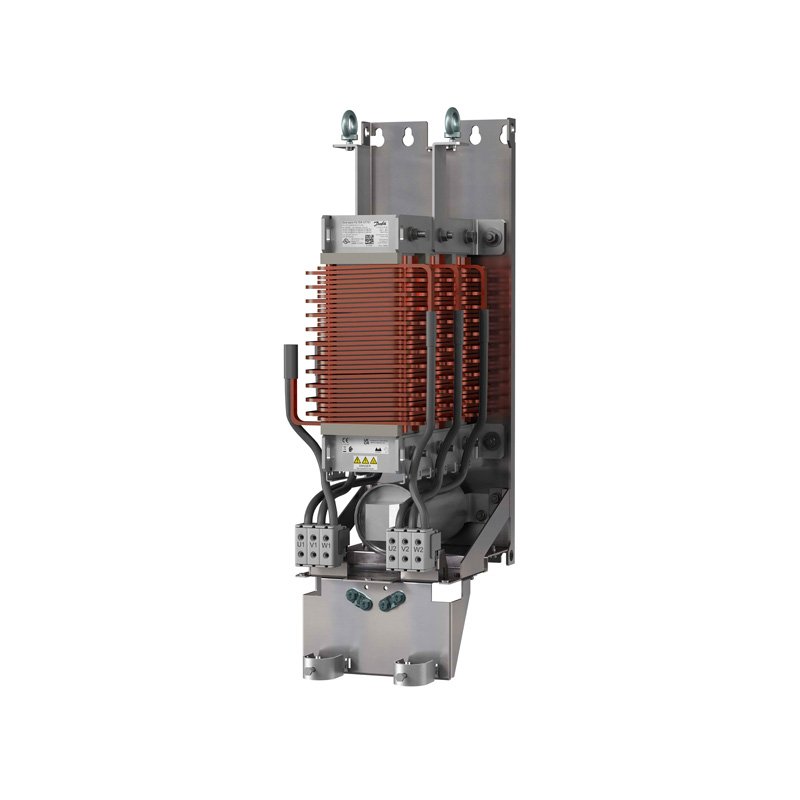

Sine-Wave Filter IP00 size 06
Other options according to Model code
The sine-wave filter provides a sinusoidal phase-to-phase motor supply voltage. The filter reduces motor insulation str.
| Gross weight | 72.1 kg |
| Net weight | 55.6 kg |
| Volume | 240 l |
| EAN | 5714853340828 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product series | OF7S1 | Sine-wave Filter |
| Product target | -S | Frequency Converters |
| Cooling method | -AN | Air-cooled, passive |
| Voltage class | -25 | 200-500 V AC |
| Current rating | -73A0 | 73 A |
| Nominal frequency | -070 | 70 Hz |
| Thermal protection | -TX | None |
| Protection rating | -E00 | IP00/Open Type |
| Frame designation | S1C06 | Sine-Wave Filter IP00 size 06 |
| Typecode Part 1 | OF7S1-S-AN-25-73A0-070-TX-E00 | |
| Salescode part 1 | OF7S1-S-AN-25-73A0-070-TX-E00 | |
| Product Catalog | NO_VIEW | NO VIEW |
| Calculated Gross Weight [kg] | 72.1 | |
| Calculated Net Weight [kg] | 55.6 | |
| Modelcode01 | OF7S1-S-AN-25-73A0-070-TX-E00 | |
| Vendor | ERR01 | Cannot Determine Vendor |
