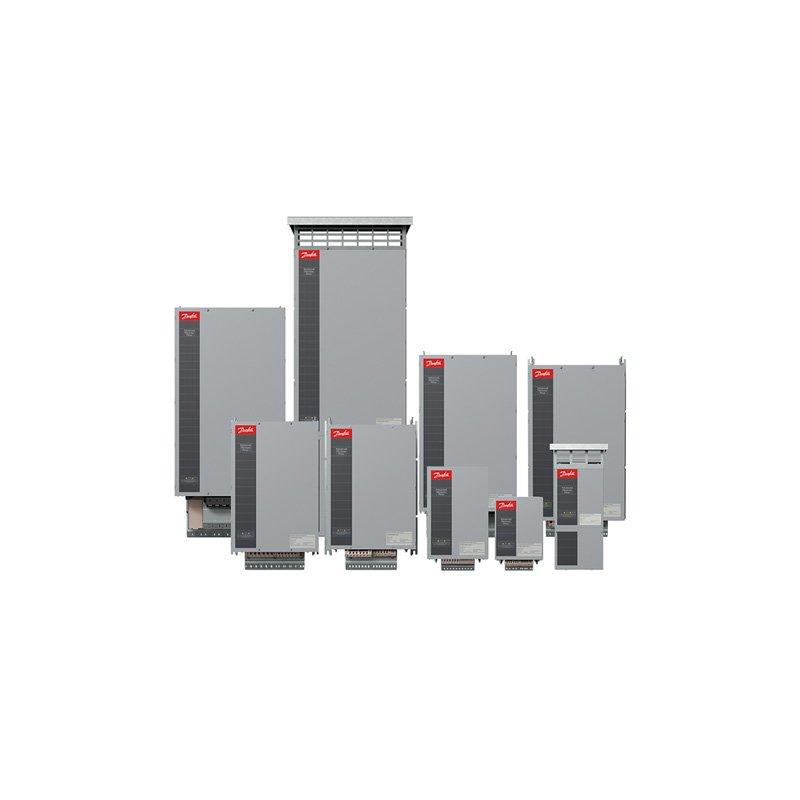

Advanced Harmonic Filter for Frequency Converters
OF7P2-S-AF-46-380A-060-10-T1-E20
Air-cooled, forced, 460 V AC
380 A, 60 Hz, THDi ≤ 10 %
Thermal switch 145 °C
IP20/Open Type
AHF X7 IP20 w/ External Fan
Other options according to Model code
This advanced passive harmonic filter ensures THDi system performance levels of ≤5% or ≤10% respectively. Compatibl.
| Gross weight | 193 kg |
| Net weight | 172 kg |
| Volume | 672 l |
| EAN | 5715253141305 |
| Product View (Switch) | GLBL | Global (Standard) |
| Product series | OF7P2 | Advanced Harmonic Filter |
| Product target | -S | Frequency Converters |
| Cooling method | -AF | Air-cooled, forced |
| Voltage class | -46 | 460 V AC |
| Current rating | -380A | 380 A |
| Nominal frequency | -060 | 60 Hz |
| 2nd voltage class | -40 | 400 V AC |
| 2nd current rating | -385A | 385 A |
| 2nd nominal frequency | -060 | 60 Hz |
| Current harmonic distortion | -10 | THDi ≤ 10 % |
| Thermal protection | -T1 | Thermal switch 145 °C |
| Protection rating | -E20 | IP20/Open Type |
| Frame designation | +P2AX7E | AHF X7 IP20 w/ External Fan |
| Product Catalog | NO_VIEW | NO VIEW |
| Salescode part 1 | OF7P2-S-AF-46-380A-060-10-T1 | |
| Salescode part 2 | -E20 | |
| Typecode Part 1 | OF7P2-S-AF-46-380A-060-10-T1 | |
| Typecode Part 2 | -E20 | |
| Material Gross Weight | 193 | |
| Material Net Weight | 172 | |
| Modelcode01 | OF7P2-S-AF-46-380A-060-10-T1 | |
| Modelcode02 | -E20 | |
| Calculated Gross Weight [kg] | 193 | |
| Calculated Net Weight [kg] | 172 | |
| Vendor | ERR01 | Cannot Determine Vendor |
